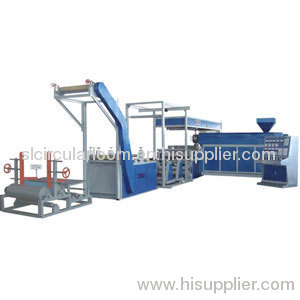

Multi-functional Laminating machine
Performance and Characteristics:
Making use of the good adhesive property of polypropylene & polyethylene at melting status, the machine adheres and laminates paper or color-printed OPP & CPP film to woven bag under pressure, and through cut-off and sewing to make paper & plastic laminated or color-printed packaging woven bags. The laminating with melted polypropylene & polyethylene film on the woven bag make laminating woven bag. laminating on the film and paper directly, or laminating color-printed OPP & BOPP film on the surface of them make the color-printed packaging bags of instant noodles, melon seeds and foods.
The extruder with helical gear reducer adopts automatic temperature-control system to adjust melting temperature, the screw and cylinder are made of 38CrMoAlA alloy steel and done treatment of nitrogenation. The double-die can realize single or double-face coating. width of coating &laminating can be regulated, and stepless speed regulation is to control coating thickness and laminating speed. The photoelectric meter of edge correcting assures the accuracy of coating. automatic edge cutting.counting,edge-blowing,perforating,edge-folding,cutting-off and winding devices are applied
Main technical parameters:
Type\Item | SL-FMF90/1000B |
Diameter of extruder screw | 90 | Gross power (Kw) | 58 | Max. coating width(mm) | 750 |
L/D ratio of screw | 26:1 | extruder motor power (kw) | 15 | Coating speed(m/min) | 30-100 |
Number of die | 2 | extruder Heating power (kw) | 32 | Installing Dimensions(mm) L×W×H | 13800x6000x2500 |
Width of die | 1000 | driving motor power | 5.5 | weight (approx)(kg) | 6000 |
